Structural steel design & detailing
Before any steel is cut, someone has to decide exactly what gets cut. We take the structure from a sketch or an architectural set to approved shop drawings, with your engineer in the loop from the first conversation.
ScopeDesign assist to shop drawings
DeliverablesPDF · DWG
CoordinationYour engineer
Typical lead time1 to 2 weeks
The drawing is where a steel job is won or lost.
A stringer that lands forty millimetres out at the top, a beam that fouls a duct, a base plate with nowhere to bolt: these are drawing problems that become site problems. We catch them on paper, where they are a conversation instead of a change order.
Our detailers work from your architectural and structural sets, confirm dimensions on site where it matters, and produce shop drawings and connection details that your engineer reviews and stamps. Fabrication starts only from the approved revision.
Item02
ServiceDesign & detailing

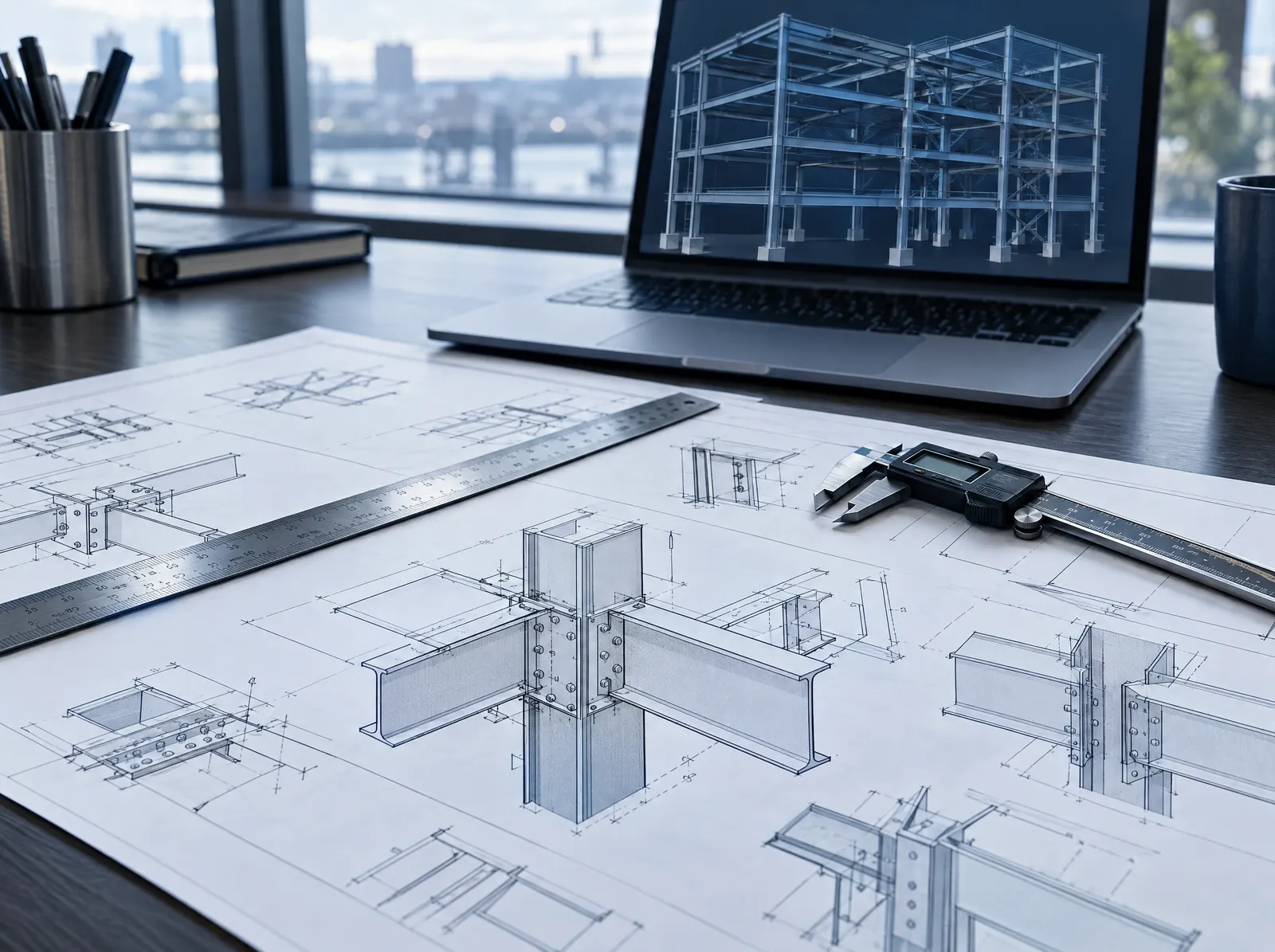

Shop and erection drawings
Member schedules, cut lists, bolt lists and erection plans, so the shop and the site crew are reading the same sheet.
Item03
ServiceDesign & detailing

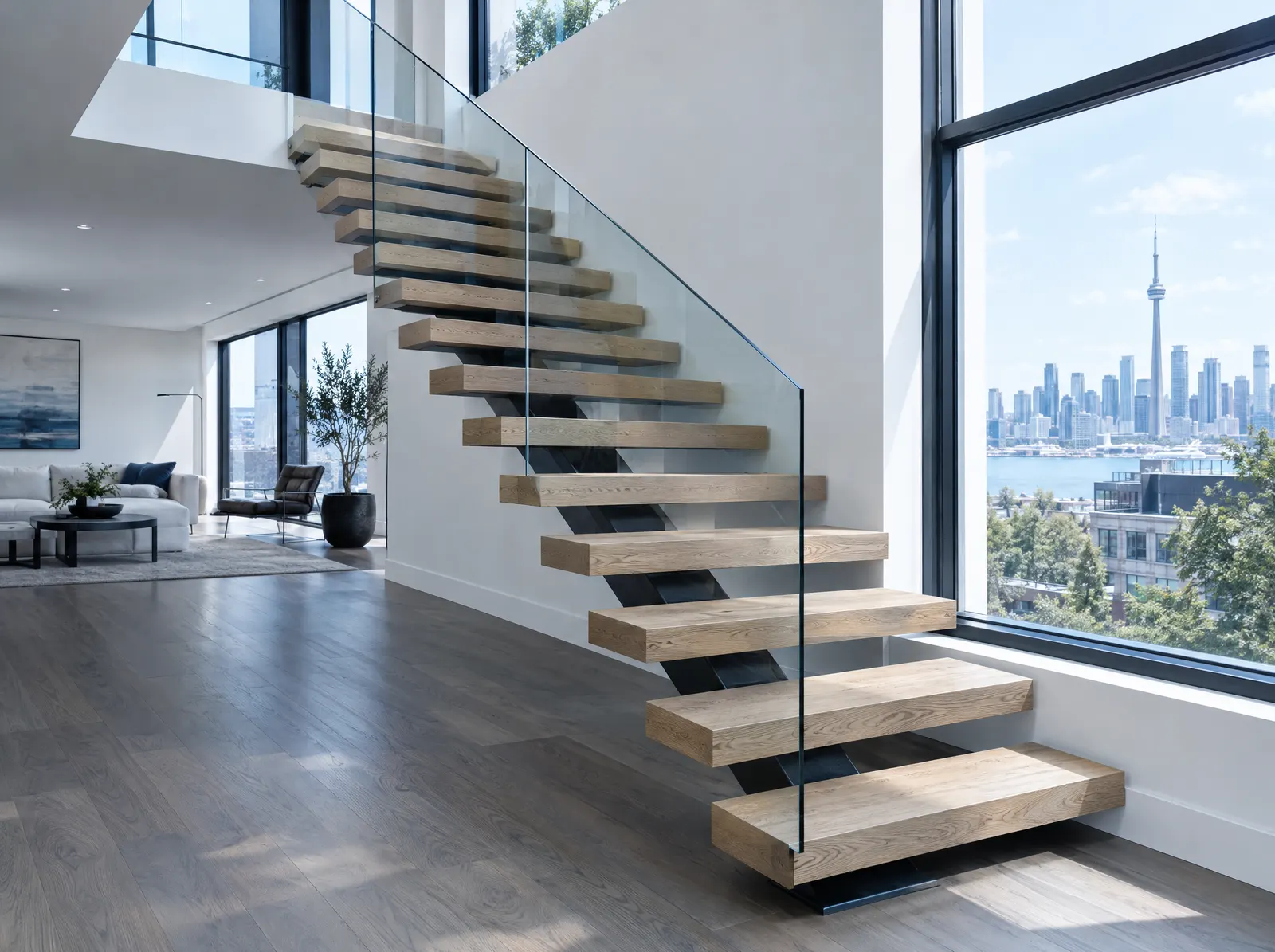

Stairs and architectural metals
Rise and run checked against your finished floor levels, guards detailed to the applicable code clause, finishes called out.
What goes on the drawing.
| Element | How we detail it | Typical |
|---|---|---|
| Inputs | Architectural set, structural set if one exists, and a site measure where the structure is already standing. | PDF or DWGphotos help |
| Shop drawings | Every member drawn with dimensions, holes, copes and welds, revision-controlled. | Full setper package |
| Connections | Detailed to the reactions in your structural drawings, or designed by the engineer we work with where none exist. | StampedOntario P.Eng. |
| Turnaround | Simple residential packages in days; commercial packages one to two weeks depending on review cycles. | 1 to 2 weeksreview included |
Questions we get asked.
Answered here, so they stop arriving by email.
Do I need my own engineer?
For structural work in Ontario, yes: the structure has to be designed and reviewed by a licensed engineer. We work with yours, or we can bring in the engineer we work with regularly.
Can you detail stairs and railings too?
Yes. Stairs, guards and architectural metals get the same treatment: measured, drawn and checked against the Ontario Building Code before fabrication.
What files do you need?
PDF is enough to start. DWG lets us work faster. A photo and a few measurements are fine for small jobs.
From measure to handover.
Visit 1
Measure
Floor levels, opening, headroom and the structure around it. No charge inside the GTA.
Drawing
Approve
A shop drawing showing the work against your levels, sent for your and your engineer's sign-off.
Visit 2

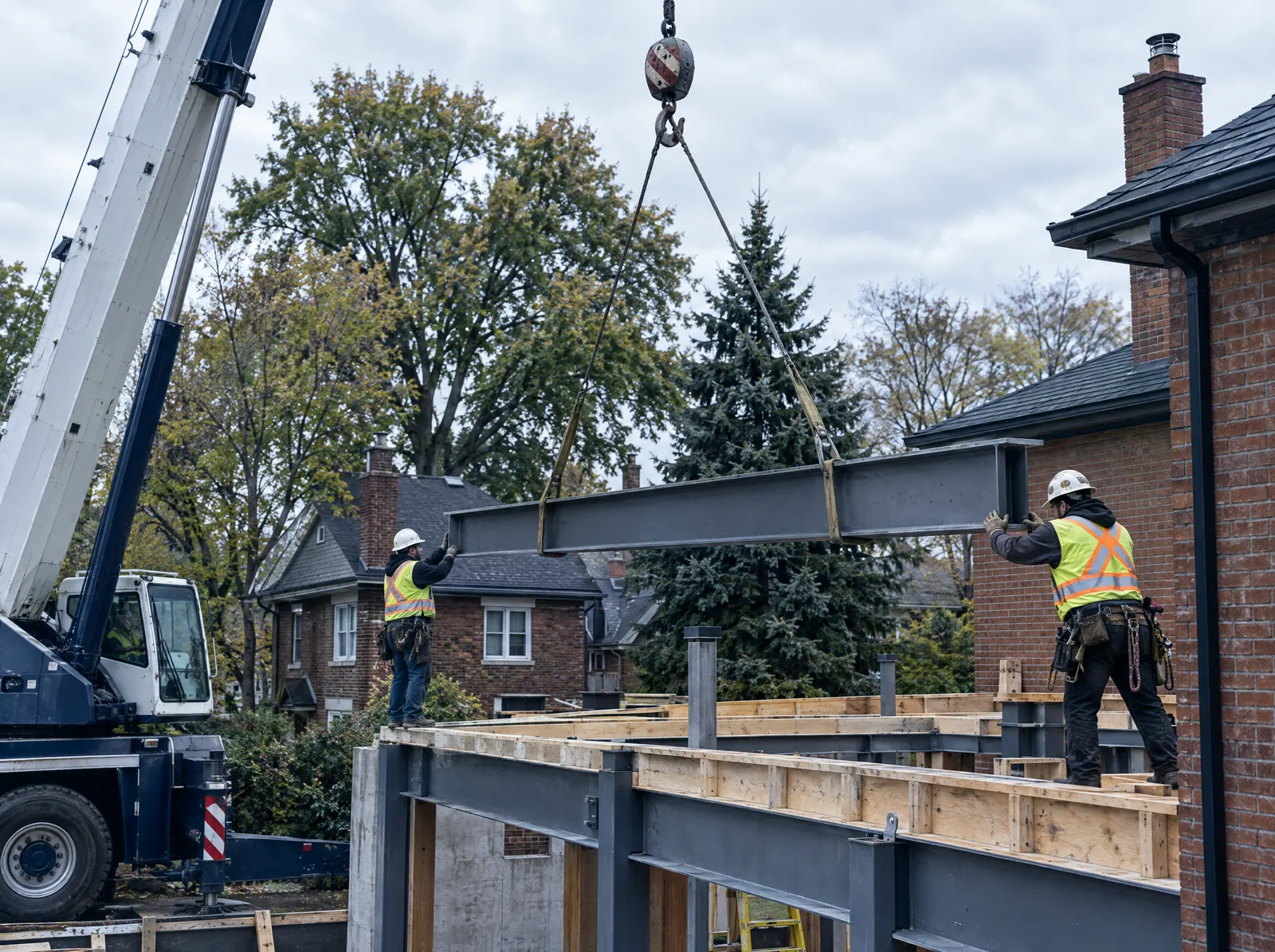

Install
Sections delivered and field welded. One to three days for a typical residential job.
Visit 3
Finish
Welds ground, coating touched up, guard checked, and the site left clean.
Next step
Send a photo and we will send back a number.
Most design & detailing enquiries are answered the same day. If it needs a site visit to be honest about, we will say so rather than guess.
